WEST 28TH STREET FREIGHT STATION - PIER 67 & 68
Manhattan

ERIE / ERIE LACKAWANNA RAILROAD

EL Liggett Building Twenty Eighth

..

.

updated:
FRIDAY, 13 JANUARY 2012 - 11:35


update summary:

date: chapter:
facility end of service date 13 January 2012 Overview
May 1981 photos of demolition 17 August 2011 Overview
June 1971 photo of #362 added 02 December 2010 Locomotive Overview & Photos
Locomotive Roster

.


Visitors please take note !

The collection of images on this website, which continues to grow; is due to the unprecedented and selfless contributions of the current owners of photo archives.

These people made their generous contributions to this website in good will, and allowed me to post their images online for the entire railroading community to view and appreciate, in admiration of these Fallen Flag Railroads.

In return, I strongly request that you please respect the ownership copyrights of those said images.

Other than that, please enjoy the history, thanks for taking the time to visit, and don't forget to sign the guestbook on the main page!

~ Phil

.

INDEX

Overview

Property & Trackage Pier Station Inbound (Original)
Freight House
Outbound (New)
Freight House
Float bridges

Locomotive Overview
 & Photos

Locomotive Roster
builders data, disposition info
Marine Equipment
Overview & Roster
Memorabilia

.. ..


Overview


1924 Army Air Service
courtesy of T. Flagg

added 27 June 2009

.

   The Erie Railroad, like many other trunk line railroads on the west shore of the Hudson River, opened an offline freight terminal in the borough of Manhattan.

   This Erie Railroad terminal was located at West 28th Street and opened circa 1902.

   This facility was built as the result of the Erie Railroad having to relocate from their West 23rd Street Yard which was placed in service in 1868. As that facility became inadequate for the larger freight cars coming into service at the turn of the century, and as the City of New York was planning on some infrastructure construction along the bulkhead, the City condemned the West 23rd Street property on which the Erie was leasing, forcing Erie to relocate their Manhattan Terminal to West 28th Street.

   This would turn out to be to the Erie's advantage, as due to the angle of Twelfth Avenue, the West 28th Street facility was almost double in size when compared to the West 23rd Street Freight Station.


April 10, 1901
New York Times Archives

added 24 June 2009

.

.

   This West 28th Street offline terminal closed in September 29, 1975, and the structures began to be razed in 1980.

.

.

RETURN TO INDEX

.


Property & Trackage

   As stated above, the facility at this location was opened in 1902, however this facility would not have its own float bridge until 1909. Please refer to float bridge chapter below for in depth information.

   The diagram seen below, shows the relation of the old West 23rd Street Freight Station with the location of this new West 28th Street Freight Station


Erie Railroad Magazine - October 1948
C. Blaikie, Jr. original diagram
modified by author

.

.

   Due to the angle of Twelfth Avenue, the West 28th Street Property averaged 747 feet in length (725 feet in length on West 28th Street and 770 feet in length on West 29th Street respectively), with roughly the same 201 foot width.

   These dimensions total to 151,742 square feet, which is almost twice the amount of square footage of the vacated West 23rd Street facility; and without crossing a city thoroughfare.

   It should be noted that some property maps shows the north-south waterfront thoroughfare as "Thirteenth Avenue", while others show it as "Twelfth" Avenue. Both are correct depending on the era but for clarity, I will refer to it as Twelfth Avenue or West Street, which is the current name of the north-south avenue.

   Please keep in mind that image below, is an 1909 G. W. Bromley & Co. Property Map (revised 1915), and while it provides a great deal of trackage layout, it should be regarded as moderately, but not totally accurate.

   Fortunately, images exist during this layout period (seen below), so we can ascertain a four story brick freighthouse occupied the property in the location shown by the property map at right.

   The Terminal Stores building is not connected to the Erie yard, and the track shown entering the Terminal Stores building is actually a siding of the Eleventh Avenue line of the New York Central Railroad but this structure would eventually be serviced jointly by the Erie and Lehigh Valley Railroads.

   The original freight house can be seen in the lower left (southeast) corner of the property. According to the legend on the Bromley map index, pink structures denote brick construction, yellow structures are wood frame construction, stone / concrete construction in light brown, and iron or metal sheathed wood construction is yellow with blue outline (i.e. pier).

    I have included these construction types to give the reader a better sense of the many types of structure compositions that existed in these freight terminals.


G. W. Bromley - 1909
(revised by author)

.added 28 Apr 2009

.

   The following image is a Fairchild Aerial Survey Photo taken in 1924.


Fairchild Aerial Survey Photo - 1924
NYPL Digital Archives

added 28 Apr 2009

.

.


Army Corp of Engineers Port Facilities Map - 1924
courtesy of J. Guthrie

added 22 June 2010

.

.

   This West 28th Street Freight Station would be equipped with a float bridge allowing carfloat traffic, but it should be noted, this was not installed until 1909. Until this date, trackage was tied into the Lehigh Valley float bridge one block south.

   This facility was also equipped with a pier station on Pier 67 and eventually Pier 68, and carfloats would be moored directly to these piers for loading and unloading, without the freight cars needing to be removed from the carfloats.

   According to the 1920 Joint Report with Comprehensive Plan and Recommendations by the New York, New Jersey Port and Harbor Development Commission; the following figures are given.

Erie Railroad - West 28th Street

tonnage handled

...

cars handled
inbound

...

cars handled
outbound

inbound

outbound

total

loaded

empty

total

loaded

empty

total




99,486

44,369

143,855 8,220

95

8,315

5,820

2,495

8,315


November 1926
Looking east - Twelfth Avenue in foreground left to right.
Note boxcab locomotive on Terminal Stores lead track on right side of photo!
D. Biernacki collection

added 01 May 2009

.

.

   This 1927 aerial image, taken directly downward shows the property to be in the original layout as in the property and aerial maps above:


1927
North is up.
Hamilton Photo Map
NYPL Map Collection
T. Flagg archives

added 30 Apr 2009

.

..   An unusual feature of this facility in its early incarnation, is that the yard was totally surrounded by a tall wood fence, with double door wooden gates at the entrance of each driveway between the tracks. This is unusual, but other images taken during this period of neighboring Lehigh Valley and Baltimore & Ohio rail facilities show they too have this security measure. This wood fence would eventually be replaced with a more modern steel chain link fence, which would be less maintenance intensive.


Twelfth Avenue & West 28th Street - April 22, 1931
Looking southeast.
Note the railyard is fenced off with wood stock fence with gates for the driveways between tracks.
NYPL Digital Archives

added 28 Apr 2009

.

.


Twelfth Avenue & West 28th Street - April 22, 1931
Looking northeast.

NYPL Digital Archives
added 28 Apr 2009

   In 1936, a new structure was built on the northwest corner of the property, which became the outbound freight house, and was built upon the site of one of the original team tracks. More about this can be read in the Outbound Freight House chapter below..

   The following image is courtesy of David Ramos. Dave is constructing HO scale layouts of the Erie Offline Freight Terminal here at West 28th Street:


Summer 1943
Looking northeast. Note 5" artillery piece extreme left edge of photo, (above the flatcar and below the overhead gantry crane).
That is either Erie locomotive #19 or #20 in the yard just above the street lamp.
Erie Railroad photo
D. Biernacki archives
via D. Ramos

added 29 Apr 2009
.

.

   In 1944, a brick two story addition to the outbound freight house was constructed. By 1954, a new set of buildings would be constructed from the southeast corner of West Street and West 29th Street, and proceeded east up West 29th Street for about half the length of the railyard.

   Circa 1950's, a yard office and light tower was installed and a platform was built in the northeast corner of the property.

   Throughout the 1960's, several changes took place: an extension to the original freight house was constructed for Lifschultz Freight Forwarders, and prior to 1964, the overhead gantry would be removed. In the later years, a transfer shed would be built between the tracks south of the West 29th Street building.

   Both 1954 and 1966 aerial imagery show significant rail traffic in the yard.

.

1954
North is up.

added 28 Apr 2009



   According to Tom Flagg's research, even in light of this merger, this facility in 1961 was receiving and shipping an average of thirty freight cars daily. If one counts the freight cars in view in the aerial photo below, thirty cars would occupy a great portion of the yard, so this thirty car per day might be close to the daily handling capacity for the yard.

   In 1960, the Erie Railroad would merge with the Delaware, Lackawanna & Western, and in essence would absorb the DL&W's property holdings throughout the East Coast. This merger added the Pier 68 Pier Station to the Erie Railroad's "West Side influence", and was one less competitor to the other railroads in the area, the Baltimore & Ohio and Lehigh Valley Railroads.


unknown date (post 1960) - Inbound Freighthouse (north wall)
Note "EL Diamond" herald on trailers.
courtesy D. Ramos

added 29 Apr 2009

..

   In the image above we see that the inbound freight house has a four track capacity. Track capacity  was a high as five tracks. (see image in Inbound Freight House chapter).

   According to the 1965 Army Corp of Engineers Port Facilities close up on page 54 of Volume 2 of Tom Flagg's "New York Harbor Railroads in Color", there is a track connection to the Lehigh Valley float bridge, one block south. This track connection is suspect as it is not seen in the March 1972 aerial, also by Tom Flagg.

   Visible in the 1972 is some freight traffic in the yard and an empty station carfloat affixed to the float bridge.


West 28th Street Yard & Terminal Stores Building - March 1972
Looking east.
T. Flagg photo

added 28 Apr 2009

.

.


West 28th Street Yard - May 1974
Looking east. Two story addition on east end of Outbound Freight House (over the of covered platform) on left,
Inbound Freight House on right. Note the blacked out center on the Erie logos on the boxcars.
T. Flagg photo

added 28 Apr 2009

.

   This photo above, also taken by Tom Flagg (also from I believe atop the now demolished West Side Highway) shows the Erie West 28th Street Freight Station in May 1974.

   The freight yard is mostly devoid of freight cars, but an Erie - Lackawanna SW8(?) appears to be stationed at this facility for a little while longer.

   The West 28th Street Freight Station was equipped with an overhead gantry with 25 ton lifting capacity in the photo below (an enlargement from the Summer 1943 photo above) shows in detail this gantry, which replaced an earlier gantry in 1922.

   Take note that this gantry is stationary, being mounted to concrete footings. This authors feels that this gantry was never a movable type as evidenced by the November 1926 aerial photo above, where boxes and barrels can be discerned at the feet of the gantry.


Summer 1943
D. Biernacki photo close up

added 01 May 2009

.

.

   The following image, dated October 1964; shows the Erie Railroad's West 28th Street Freight Yard & Freight Station looking west (towards the Hudson River).


West 28th Street Yard, including & original (inbound) and new (outbound) Freight Houses - October 1964
Looking west.
R. J. Baxter photo
via T. Flagg

added 15 May 2009

.

.


West 28th Street - December 1971
Looking east from float bridge approach.
Note track lead veering right, towards the white building on right with arched windows.
This is the Terminal Stores Building and lead track for it.
T. Flagg photo

added 15 May 2009

.

.


West 28th Street - December 1971
Looking east from Twelfth Avenue with the newest addition to the "Inbound" freight house:
structure with curved brick wall and roll up doors.
Note the EL switcher to left of white "oil house" building & yard tower.
T. Flagg photo

added 15 May 2009

.

.

RETURN TO INDEX

.


First Freight House / Inbound Freight House

   The original freight house for this facility, was located in the southeast corner of the property and four stories in height. It might have replaced a simple platform used for less than carload (LCL) freight transfer sometime circa 1905-1908.

   Approximately 400 feet in length and 50 feet in width, the unusual feature of this structure is that is was constructed with four brick firewalls, thereby partitioning the structure into five sections. In all essence, it is five separate structures adjoined end to end. These firewalls extended through and above the roof line and can be seen in the following image:


Erie Railroad Magazine - October 1948
Note the employees pitching horseshoes in front of the fence!
ELHS "The Diamond" Vol.... 18, No. 4

added 30 Apr 2009

.

   It is concluded that each of these firewalls had a firedoor on each floor that could be closed in the event of a fire, and prevent the spreading of that fire to the next section of the building, but in normalcy, would provide access throughout the building to the three freight elevators, the machinery rooms for which are the brick box shaped items on the roof and located at the from the center through the west end of the building.

   Five tracks originally served this freight house. Access to the outermost track would be via the bridge plate method:

   The illustration below right shows how this arrangement worked. The bridge plates (yellow) employees to access the left most boxcar (in red) by using the  boxcars between the freight house and red boxcar as bridges themselves. The white boxcar would unloaded first, with the light gray boxcar being unloaded next. Once a pathway was clear through the white boxcar, both the white and light gray boxcars could be unloaded simultaneously. Once a pathway was clear to and through the dark gray boxcar, the red boxcar.

   This bridge plate method would be applied to the other boxcars stationed on the freight house tracks, so more than four boxcars could be unloaded simultaneously. This method could be used anywhere the freight cars were located adjacent to the loading dock or freight door.


July 1960
Erie Railroad Magazine photo

ELHS "The Diamond" Vol.... 18, No. 4
added 30 Apr 2009...

....


Terminal Stores Building

   One of the other unique things about the Erie operation at West 28th Street, is that is shared trackage with the Lehigh Valley Railroad in the Terminal Stores Building located on the next block south from the Freight Station (across West 28th Street).

   This Terminal Stores building was bounded by West 28th, West 27th Streets and Eleventh and Twelfth Avenues. Tracks would enter the seven story structure roughly in the middle of the block on the west side (Twelfth Avenue / West Street) through a brick archway, two tracks in width. The Terminal Stores building can be seen here in a 2008 aerial photo to the right.

  This building also once had a turnout and access for the New York Central freight line (street trackage) on Eleventh Avenue (east face) side of the building (not shown).

   This building was also known as the Liggett Building. This structure was also unique as it was not built as one large structure, but as twenty-four independent warehouse arranged in a two by twelve arrangement as seen in the image below.

.

   This structure remains standing to this day, although I believe the structure has been converted to residential use / condominiums.

both photos :
Live Search Maps

added 30Apr 2009

   In the image below, we see Erie #20 exiting the Terminal Stores Building and veering northwest towards the Erie float bridge. Here, it will pass over a turnout and in reverse switch to another track, taking it northeast and into the West 28th Street Yard (see map second image below)

   The front of the locomotive on the left edge of the photo, is a Lehigh Valley Railroad EMD model SW1 awaiting to enter the Terminal Stores building, most likely to pick up freight cars for Lehigh Valley interchange in the West 27th Street Yard (behind the photographer).


Erie Railroad #20 - May 1955
Twelfth Avenue between West 28th and West 27th Streets, exiting the Terminal Stores Building
H. H. Harwood Jr. photo

added 30 Apr 2009

.

.


1933 - Port New York Authority
Port Authority of New York New Jersey archives
The original map which was located in the World Trade Center, was destroyed 11 September 2001
A copy was fortunately made by T. Flagg!
T. Flagg archives

added 30 Apr 2009

RETURN TO INDEX

.


Second or Outbound Freight House / West 29th Street Freight House / Lifschultz Fast Freight

   In 1936, Erie Railroad removed the northwestern most team track, and constructed a long narrow 1 1/2 story freight house on the corner of West 29th Street and Twelfth Avenue (West Street). This new building was designated for Outbound Freight.

   The following image, from the New York Public Library Digital Archives and dated 1940, shows the new Erie outbound freighthouse, as well as the existing gantry crane.


12th Avenue between West 27th and West 28th Streets, looking north - August 24, 1940
Note the early blimp - believed to be US Navy K-Class blimp.
P. L. Sperr photo
NYPL Digital Archives

added 30 June 2009

.

.

   This structure was built with two large roll up doors on the Twelfth Avenue Side and approximately ten roll up doors on the West 29th Street wall . All doors would be situated on a small loading dock with an roof overhang, and would allow motor trucks to back right up to the freight house and unload outbound freight in all weather:


Summer 1943
Looking east-southeast from the West Side Highway.
Compare to photo below from different angle, one year later after addition was constructed.
Erie Railroad photo
D. Biernacki collection

added 01 May 2009

.

.   Two tracks along the south wall provided freight car access, via a bridge plate, used to bridge the gaps between the boxcars on adjacent tracks. (Notice the other plates already in place behind the employee leading to and giving access to other boxcars.

   The illustration below right shows how this arrangement worked. The bridge plates (in yellow) employees to access the left most boxcar (in red) by using the boxcars between the freight house and red boxcar as bridges themselves. The white boxcar would unloaded first, with the light gray boxcar being unloaded next. Once a pathway was clear through the white boxcar, both the white and light gray boxcars could be unloaded simultaneously.

   Once a pathway was clear through the light gray boxcar, the dark gray boxcar would be accessed next and finally, the red boxcar. This method would be applied to the other boxcars stationed on the freight house tracks, so more than four boxcars could be unloaded simultaneously.

   This bridge plate method would be applied to the other boxcars stationed on the freight house tracks, so more than four boxcars could be unloaded simultaneously. This method could be used anywhere the freight cars were located adjacent to the loading dock or freight door.


July 1960
Erie Railroad Magazine photo

ELHS "The Diamond" Vol.... 18, No. 4
added 30 Apr 2009...

....

.

.


 West 28th Street "Outbound" Freight House - 1944
Looking east-northeast from Twelfth Avenue.
Erie Railroad photo
D. Biernacki collection

added 01 May 2009

.

   In 1944, an extension was constructed onto the east end of this structure which was a full two stories in height. This addition would provide additional platform space on the first floor and provide space for offices and rooms (lockers, bathrooms, etc) for the twenty or so people employed during this era, on the second floor.

   When this construction was completed, it would serve as a shipping depot for Lifschultz Fast Freight (New York - Chicago) as well as Arrow and Railway Express, also contract freight forwarders.


West 28th Street - "Outbound" Freight House - May 1974
Looking east-southeast from West Side Highway.
T. Flagg photo

added 15 May 2009

.

.


West 28th Street "Outbound" Freight House - October 1977
Looking east.
T. Flagg photo

added 28 Apr 2009

   This photo above, also taken by Tom Flagg (also from I believe atop the now demolished West Side Highway) show the second or Outbound Freight House in color. At the time of this photo, another track has been installed along the southern wall of the freight house, increasing the capacity to three tracks, and a covered platform to the south of that.

   By the date of this image above however, the boxcars between the freight house and the covered platform are being used by Lifschultz Freight for storage and are not being interchanged via carfloat.

   If you take notice, there are no other freight cars in the rest of property, and tractor trailers now occupy the loading bay doors along the inbound freight house in the right background.

   According to "Erie-Lackawanna in Color, Vol. 3", by DeYoung (Morning Sun, 1994, p.127) it states that the terminal closed on September 29, 1975.

   By 1979, rail traffic is no longer seen, but some of the original structures remained. Just one year, the entire block would be devoid of trackage, structures and any remnants of the Erie Railroad's presence at this location.

   In August of 2011,  I was rummaging though some boxes of my father's slides on the hunt for something to scan. The following photos were found in a slide box marked "Misc Trains". The slide holders are dated May 1981:

Remains of Outbound Freighthouse and Sign - May 1981
Looking south.
S. Goldstein photo
authors collection

added 17 August 2011

.

.


Looking west - May 1981
West Side Highway in background.
S. Goldstein photo
authors collection

added 17 August 2011

.

.


Looking east - May 1981
Piles of friction bearing trucks.  Believed to be from the landlocked boxcars formerly used for storage.
S. Goldstein photo
authors collection

added 17 August 2011

.

.


Looking southeast - May 1981
Piles of friction bearing trucks. Believed to be from the landlocked boxcars formerly used for storage.
S. Goldstein photo
authors collection

added 17 August 2011

.

.


Looking south - May 1981
Piles of friction bearing trucks. Believed to be from the landlocked boxcars formerly used for storage.
S. Goldstein photo
authors collection

added 17 August 2011

.


Looking east-southeast - May 1981
Piles of friction bearing trucks. Believed to be from the landlocked boxcars formerly used for storage.
S. Goldstein photo
authors collection

added 17 August 2011

.

.


Rail dated 1930 - May 1981
S. Goldstein photo
authors collection

added 17 August 2011

.

.


Oxy-Acetylene cut track bolts.
Demolition is rarely pretty. Especially on the last of Manhattan's West Side offline terminals.
S. Goldstein photo
authors collection

added 17 August 2011

.

.

RETURN TO INDEX

.


Pier Station

   The Erie Railroad originally occupied Pier 67 between West 27th and West 28th Streets, on the Hudson River.

   Carfloats would be moored directly to the pier for loading / offloading to and from the pier shed, which ran the full length of Pier 67.

   Pier 67 would originally be leased to the Panama Railroad Steamship Company. On an unknown date, it would be occupied by Erie Railroad themselves.

   A map of Railroad & Terminal Facilities in the Port of New York, issued by the New York Central Railroad in 1943, shows Pier 67 occupied by the Erie Railroad and Pier 68 occupied by the Delaware, Lackawanna & Western Railroad.

   Pier 68, was a far as can be ascertained, was always occupied by the Delaware, Lackawanna & Western Railroad, but they would not have a freight yard here.

   The 1960 merger of the Erie Railroad and the Delaware Lackawanna & Western Railroad into the Erie - Lackawanna Railroad would add Pier 68 Pier station to the Erie Railroad property holdings on the West Side of Manhattan.

   However, by circa 1965, Pier 67 was not occupied by any railroad, with only Pier 68 being occupied by the by the Erie - Lackawanna Railroad.

   With the formation of, and Erie - Lackawanna subsequently being absorbed into Conrail, which wanted nothing to do with Rail - Marine operations of any sort. Therefore, the West Side Pier Stations and Freight Terminal properties would be sold off, ending almost 70 years of Erie Railroad presence in Manhattan.

RETURN TO INDEX

.


Float Bridges

  .
   The float bridge used by the Erie Railroad at this facility would be located just south of the foot of West 28th Street, in between Piers 67 and 68.

   Directly to the north of the float bridge bulkhead would be a Erie Railroad Bulkhead Shed.

   However, prior to the Erie installing their own float bridge in 1909, they shared access with the Lehigh Valley Railroad float bridge at their West 27th Street Freight Station:


Annual Report 1902 - City of New York Department of Docks
added 02 July 2009


.

   This facility used two float bridges throughout its history. The first float bridge which as expected, was a wood Howe Truss. This float bridge was installed in 1909, and served the facility until circa 1950.


West 28th Street - Howe Truss Float Bridge - November 1910
Pier 67 on left - Erie Railroad Bulkhead Shed to right.
T. Flagg archives
added 30Apr 2009

.

.


West 28th Street - Howe Truss Float Bridge - 1910
Note steam locomotive and torsional twisting of the float bridge!
NY Department of Docks photo
T. Flagg archives
added 15 May 2009

.

.

   The second float bridge to have been used at the West 29th Street Freight Station, was a pony plate girder. It is this type of float bridge that is seen in the 1931 aerial photograph (not shown here), the 1954 aerial photograph shown above and the Tom Flagg image below.

   In the image below, which was taken by Tom Flagg (no date mentioned); we see the pony plate girder float bridge as it appeared at the West 28th Street Freight Station. We can also see the remains of Pier 68 behind the float bridge.


West 28th Street Float Bridge (Pony Plate Girder) - unknown date
T. Flagg photo

added 15 May 2009

.

.

   According to DeYoung's "Erie-Lackawanna in Color, Vol. 3" (Morning Sun, 1994) p. 127 states that the terminal closed on September 29, 1975, so I think it safe to conclude that the float bridge was not longer used after this date as well.

   The wooden float bridge approach in the image below, can be seen between the concrete bulkhead and both the Howe Truss and Pony Plate Girder float bridges in the images above, was photographed by Paul Strubeck on December 27, 2007, where it still remains to this day.


West 28th Street  - Float Bridge Approach remains - December 29, 2007
P. F. Strubeck photo

added 30 April 2009

.

.


West 28th Street Pony Plate Girder Float Bridge at Brooklyn Army Terminal - undated (post 1981 - pre 1995)
J. McCluskey photo
via P. F. Strubeck collection

added 30 April 2009

.

    The Pony Plate Girder float bridge was relocated to the Brooklyn Army Terminal (adjoining the north edge to the LIRR Bay Ridge Yard) by New York Dock Railway in 1981. It was originally believed that the relocation and installation of the float bridge at Brooklyn Army Terminal was to ease congestion of Bush Terminal, and to avoid the sharp curves approaching the Bush Terminal float bridges and be be able to the handle railcars of longer length which were gaining use by the Class 1 railroads.

   This turns out not to be case, and in reality this float bridge was installed at this location while the City of New York underwent the construction and resurfacing of First Avenue, which temporarily blocked the First Avenue right of way.

   It was used from 1981 through 1991, at which time the New York Cross Harbor Railroad (successor to the New York Dock Railway in 1983) stopped using it as it was determined to be sufficiently deteriorated and not financially feasible to rebuild or replace. This float bridge still remains at this location, however it is now half sunk:


West 28th Street Pony Plate Girder Float Bridge at Brooklyn Army Terminal - July 6, 2006
photo by author

added 30 April 2009

.

   It has pulled away from its bulkhead anchors (believed to be during the 1992 Nor'easter storm surge that inundated the shorelines of New York City). The inner end (land side) is underwater which does not float as the outer end does. As the pontoon is still watertight, that end still floats. Usually, it is the pontoon that usually leaks from age, and the outer end sinks.

RETURN TO INDEX

.


Locomotive Overview

#612

  Thanks to David Ramos and Jay Held, we know have knowledge of at least one steam locomotive to have been assigned to the Erie Railroads' West 28th Street Freight Station: 0-6-0T #612

  Preliminary research of builders records had failed to reveal any information on this locomotive. Frustrated, I solicited Jay Held for assistance, and in turn he referred me to Schuyler Larrabee, who was very kind in furnishing the following information:

"612 is a member of the next to last class built before the "modern" series began, the B5 and B6 classes. I have a copy of the photo you sent. 612 was built in 1887, in the Susquehanna Shops. (Susquehanna PA) of the ERIE as New York, Lake Erie & Western (an earlier corporate manifestation of the ERIE) 25.

It was renumbered to 412 in 1889, and again to 612 in 1895. In 1914, it was rebuilt to the form you see in your photograph. I don't think I have a photo of these engines as built, only as renovated.

No. 612 was sold for scrap in 1927."

   So, it is with the greatest thanks to Schuyler (and Jay for pointing me in Schuyler's direction) we now have information for #612.

   Lapse forward to 06 July 2009 when Chris Schmuck sends a December 1912 image of #612, and wearing a steam dummy shell no less! This image, which is part of the Erie Lackawanna Histrical Society archives, can be see below and I am anticipating on acquiring a better image of this photo in the future.

   The original caption accompanying the image in the issue of "The Diamond" stated that #612 is a member of the B-1 class.

.   Upon the passage of the Kaufman Act, which in effect eliminated the use of steam locomotives within city limits; those railroads operating with the city confines had to turn to alternate methods of motive power. This coincided with Ingersoll - Rand's development of an internal combustion boxcab locomotive. You can read more about the Kaufman Act on the main page of this website: Kaufman Act.

.  We also know of several diesel - electric locomotives to have operated at this facility:
.

#20, #19

   It is clearly understood, that due to the passing of anti-smoke legislation by New York City, steam locomotives were forced out of service in this borough and necessitating the railroads in New York City to purchase diesel-electric locomotives.

   Erie Railroad #20 was a 60 ton oil-electric boxcab locomotive that was built in 1926 by American Locomotive / General Electric / Ingersoll Rand. This locomotive was the sixth oil-electric boxcab in a long line of boxcabs constructed by A/GE/IR, following the success of CNJ #1000 boxcab built the previous year.

   There is a distinct possibility that sister locomotive #19 operated here as well.

.

#304

   Erie Railroad locomotive #304 was an American Locomotive Company model HH660, denoting 660 horsepower, high hood design. Disposition on this locomotive is not recorded in the builders records.

.

#308, 311, 315

   Erie Railroad locomotive numbers 308, 311, and 315 were all American Locomotive Company model S1 locomotives.

   #308 is noted to have been scrapped.

   #311 is noted to have been sold to Precision Engine.

   #315 still survives to this day in Galena, Kansas, although it is very poor condition.

.

#362

   After my father's passing, I began going through his collection of slides taken during his days of railfanning. In a carousel of slides dated August 1974 and taken at Steamtown when it was located at Bellows Falls, VT; I located an image of Erie Lackawanna #362. At first, I didn't think anything of it, thinking it was just another locomotive on display at Steamtown. That thought didn't last,when I saw the building behind the locomotive that had Freight Station on it.

   Much to my surprise, amazement and great pleasure, I was looking at the Erie Lackawaana West 28th Street Freight Station! I then looked at the date on the slide mount which was June 1971. How this one slide wound up in the middle of this 1974 carousel, I'll never know. Dad never mentioned taking this image, and while he took a great deal of images of the Brooklyn Offline Terminals, this is the only Manhattan Offline Terminal I have located all other images in 1971 are in other locales.

   Futhermore, as #362 is a SW8 model, I now feel that #362 could very well be the locomotive seen in the May 1974 T. Flagg image.

.

unknown EMD SW8

   Seen in Tom Flagg's photograph of May 1974, an as yet unidentified Erie - Lackawanna Electro Motive Division (GM) model SW8 can be seen in the background in yellow maroon and gray livery.

.

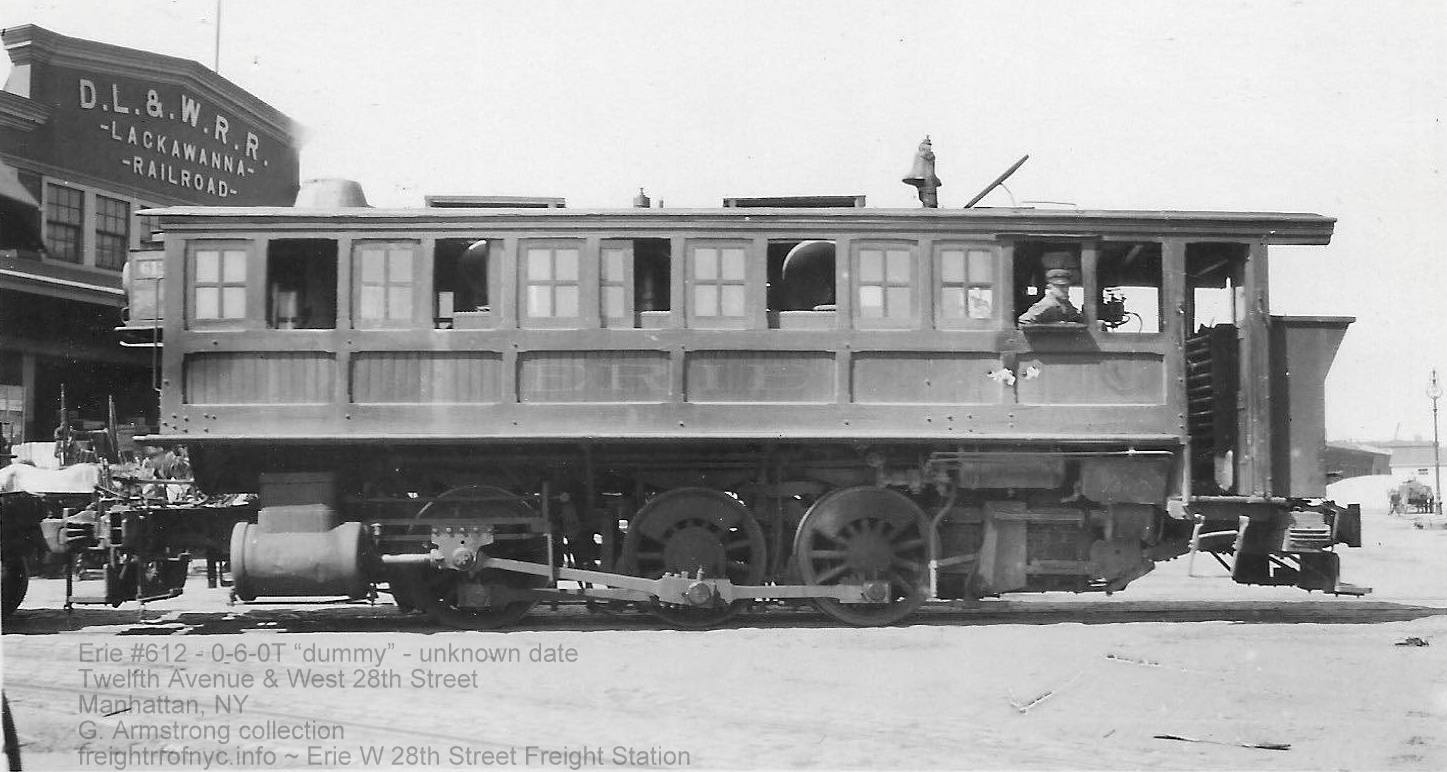

#612 - Twelfth Avenue & West 28th Street - December 19, 1912
With "dummy" shell.
Sennstrom collection
ELHS archives
via C. Schmuck

added 06 July 2009

.


#612 - September 1927? - West 28th Street Yard, New York, NY
Date is suspect as there is quite a bit of snow on the ground for September!
unknown photographer
Bob's Photo archives
authors collection

added 08 March 2010

.

.


#612 - September 1927? - W
est 28th Street Yard, New York, NY

Appears to be taken a few seconds after photo above.
Without "dummy" shell
.
added 29 April 2009

.

.


#20 - May 1926 - AGEIR builders photo
S. Berliner archives

added 26 Apr 2009

.


#20 - 1936 -
West 28th Street Yard, New York, NY
B. Collins photo
T. Flagg archives

added 30 Apr 2009

.

.


#20 - crossing Twelfth Avenue - May 1955
Looking west towards Pier 68. Note flagman in front of truck walking to stop southbound traffic,
and note Pier 68 "medallion" of West Side Highway elevated!
H. H. Harwood Jr. photo
via T. Flagg

added 12 May 2009

.

.


#20 - January 11, 1938 - West 28th Street Yard, New York, NY
L. M. Kelley photo
authors collection
added 26 Apr 2009

.

.


#304 - unknown date - West 28th Street Yard, New York, NY
J. Long photo
D. Biernacki collection via D. Ramos

added 29 Apr 2009

.

.


#311 - unknown date - West 28th Street Yard, New York, NY
Railroad Enterprises photo via D. Ramos

added 29 Apr 2009

.

.


#315 - January 1961 - West 28th Street crossing Twelfth Avenue
Looking east.
M. Herson photo
M. Herson archives

added 26 Apr 2009

.


#362 - June 1971 - West 28th Street
Looking south.
S. Goldsten photo
authors collection

added 02 December 2010

.

.


unknown # - (Erie Lackawanna SW8) -  May 1974 - West 28th Street Yard, New York, NY
T. Flagg photo

added 28 April 2009

.

West 28th Street Freight Station (ERR) Locomotive Roster

railroad number / name builder c/n build
date

gauge
wheel
arrangement
model driver
dia.

cylinders

acquired

disposition
notes ref
Erie #612 Susquehanna (Erie)   1887 std. 0-6-0T       new sold for scrap, 1927 [b]
Erie #20 ALCo/
GE/IR
66681/
10024
5/25/1926 std. B-B 60 ton
boxcab
    new retired & scrapped November 1958, Meadville, PA body type B3-3
300 hp [a]
[1]
[20]
[45]
Erie #19 ALCo/GE/IR 66757/
10137
9/1928 std. B-B 66 ton
boxcab
    new retired October 1958
scrapped November 1958
,
Meadville, PA
used at Harlem Station,
possibly used here as well

body type B3-4
300 hp
[1]
[20]
Erie #304 ALCo 69154 1939 std. B-B HH660     new     [1]
Erie #308 ALCo 74963 11/1946 std. B-B S1     new scrapped   [1]
Erie #311 ALCo 75122 1/1947 std. B-B S1     new to Precision Engine   [1]
Erie #315 ALCo 75356 9/1947 std. B-B S1     new reported on static display
Galena, KS (1996)
660 hp [1]
E -L #362 EMD 14064 8/1951 std. B-B SW8 used built as DL&W #502,
to Conrail #8691
E -L ? EMD ? ? std. B-B SW8       (possibly #362 above) seen in May 1974
T. Flagg photo


Locomotive Footnotes:

[a]

Erie Railroad #20 was constructed first in May 1926.
Erie Railroad #19 was constructed in September 1928. Both locomotives were scrapped in November 1958.

It is believed both of these locomotives served at the West 28th Street Freight Station.
[b] Information courtesy of Schulyer Larrabee:
612 was built in 1887, in the Susquehanna Shops (Susquehanna, PA) as New York, Lake Erie & Western
#25. Renumbered to 412 in 1889, renumbered to 612 in 1895. In 1914, it was rebuilt
. Sold for scrap in 1927..

.

.

RETURN TO INDEX


Marine Vessels & Equipment

   Being a Erie Railroad operation, and subsequently an Erie - Lackawanna; the Pier Stations and float bridge would have been serviced by Erie / Erie Lackawanna Railroad tugboats, carfloats and lighters.

   Keeping in mind the large amount of marine equipment that the Erie / Erie - Lackawanna Railroad owned and operated a Marine Roster on this website would not be beneficial or justified; and therefore will not be forthcoming.

.



RETURN TO INDEX


Memorabilia

   The following freight bill was located in my father's collection of paper. It was attached to two other Erie freight bills originating at Duane Street and an Erie Railroad receipt.


collection of author



RETURN TO INDEX


Like what you see? Suggestions? Comments?

Click here to sign the:


Main Page

American Dock & Trust

Bush Terminal

North 4th St Freight Sta  (PRR)

207th St Yard  (IND / NYCTA)

Astoria Light, Heat & Power

Degnon Contracting / Degnon Terminal...

Phelps - Dodge

Wallabout Terminal  (DLW)

Atlantic, Gulf & Pacific

G & R Packing

Pouch Terminal

Wallabout Station  (Erie)
Atlas Terminal Harlem Station  (Erie / EL) Procter & Gamble Wallabout Union  (PRR, NYC, LV, B&O)
Bronx Terminal  (CRRNJ) Harlem Transfer  (DL&W) Queens Subway Apartment & Loft Building West 15th St Freight Yard  (CRRNJ)
Bronx Terminal  (LV) Jay Street Terminal / Connecting Rikers Island West 23rd St Freight Sta  (NYLE&W / Erie)...

Brooklyn Ash Removal

New York Cross Harbor

Seatrain Shipbuilding

West 26th St Freight Sta  (B&O)

Brooklyn Dock & Terminal

New York Dock

South Brooklyn

West 27th St Freight Yard  (LV)

Brooklyn Eastern District Terminal...

New York New Jersey Rail / Port Jersey

South Brooklyn Terminal / Brooklyn Marginal.

West 28th St Freight Sta  (Erie / EL)
Brooklyn Wharf & Warehouse North 1st Street Freight Sta  (NYNHH) 25th St / South Brooklyn Terminal  (DLW) West 37th St Freight Sta  (PRR)

Development of Car Float Transfer Bridges in New York Harbor

Comprehensive List of Float Bridges located in New York Harbor

Railroad Operated Pier Stations of Manhattan

List of Railroad Operated Diesel Powered Tugboats of the Eastern Seaboard

Miscellaneous Freight Railroad Images of New York City

Double Ended Wreckers of the New York Area

.

Glossary of Definitions Indicative to Rail / Marine Terminal Operations in New York Harbor

Guestbook





TrainWeb.org Facebook Page
